SG Series bottle injection blenderThe SG series bottle injection blender can be used to some cases. It is to say where centrifugal pumps are used to transfer liquid, where such mixer can be used. The SG series bottle jet blender is an ideal mixing equipment to be used to container, storage tank and neutralization tank for oil mixing, acid-base neutralization and reaction.
The company has applied SG series bottle jet blender as its patented product.

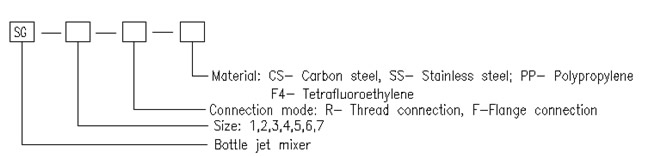

■ Denotation of product types
■ Product specifications
（1）Bottle jet blender with Thread connection
|
Model\
Size |
SG-1-R |
SG-2-R |
SG-3-R |
SG-4-R |
SG-5-R |
SG-6-R |
SG-7-R |
|
d |
Rc3/4 |
Rc1 |
Rc1 1/2 |
Rc1 1/2 |
Rc2 |
Rc3 |
Rc4 |
|
L |
170 |
220 |
265 |
345 |
400 |
520 |
610 |
|
h |
20 |
25 |
24 |
24 |
30 |
33 |
40 |
|
D |
52/50 |
60/60 |
75/70 |
85/80 |
100/90 |
125/120 |
160/150 |
Note: Figures below the slant line refer to the size of Stainless steel blender or plastic blender; figures above the slant line refer to the size of carbon steel blender
with thread connection
(2) Bottle injection blender with flange connection
|
Model\
Size |
SG-1-F |
SG-2-F |
SG-3-F |
SG-4-F |
SG-5-F |
SG-6-F |
SG-7-F |
|
d |
20 |
25 |
40 |
40 |
50 |
80 |
100 |
|
L |
205/170 |
255/220 |
300/265 |
380/345 |
440/400 |
570/495 |
660/610 |
|
D |
52/50 |
60/60 |
75/70 |
85/80 |
100/90 |
125/120 |
160/150 |
Notes:
a. If there is no special requirement, flange standard refers to HG20593- 97 PN 1.0.
b. Figures below the slant line refer to the size of Stainless steel blender or plastic mixer; figures above the slant line refer to the size of carbon steel blender.
with flange connection
Notes for order

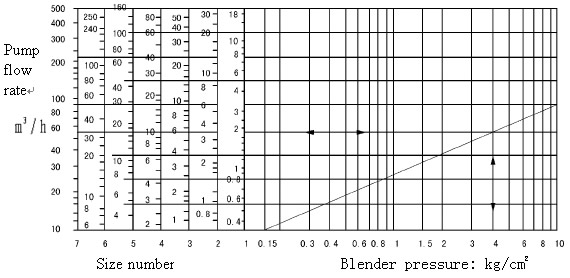

The model number and the size number of SG series bottle injection blender are well matched. For general technological process, ideal mixers can be found based on the power profile mentioned below:
Example:
Assuming: Bottle diameter: 3600mm; bottle height: 8m; pump volume: 10m3/h; blender pressure: 4kg/cm2; revolving times: 0.5h/each time
The model number of the bottle injection blender SG-4 can be derived according to the power profile.
